Flexible screw conveyor

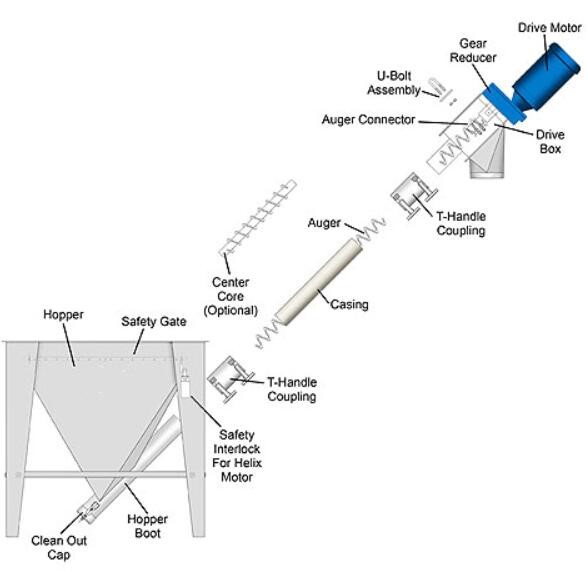

It is the Flexible Helix Conveyor. Conveyor screw and external pipe can be bent without any negative effect on the function. The external pipe is manufactured from elastomer or stainless steel, whereas the screw consists of a number of spring. The flight segments are enclosed by a metallic spiral and supported by a steel wire core. The inlet zone consists of a rectangular shaped spout with incorporated upper connection flange. The material conveyed is expelled through the upper part of the conveyor into an inclined metal shoe outlet. The screw is suspended by the drive unit mounted

Product Detail

TECHNICAL DATA:

PIPE DIAMETER	PIPE LENGTH	PIPE MATERIAL	HOPPER	MOTOR	Conveying capability	PRICE (EXW)
63MM	6M	Nylon	90L ,SS304	2.2KW	300-500KG/H	2000
89MM	6M	Nylon	90L ,SS304	2.2KW	300-500KG/H	1900
110MM	10M	Nylon	90L ,SS304	4KW	3 M3/H	3200
89MM	8.5M	PP-R	90L ,SS304	3KW	500KG/H	3400
89MM	6M	PP-R	90L ,SS304	4KW	1T/H	3600

PREVIOUS：cabinet dryer

NEXT：AC chiller for control room

Best Sincere Industry Ltd was founded in 1995.We located the famous manufacture city-Dongguan. We are devoted to plastic machine development and production, as well as automation solution.

We provide high performance products for our global customers: Crushing and recycling machine, Dehumidifier and drying system, conveying system, Dosing and mixing unit, cooling system, plastic package system, Central conveying system, automation design etc. Our products are widely used in plastic, electronic, toy medical and other fields.

Best Sincere industry always hold the “Sincere, Patient, Quality first, Immediate after-sales service’ principal.” Customer Satisfaction Is Supreme.We will always provide quality products and service
